Injection molding

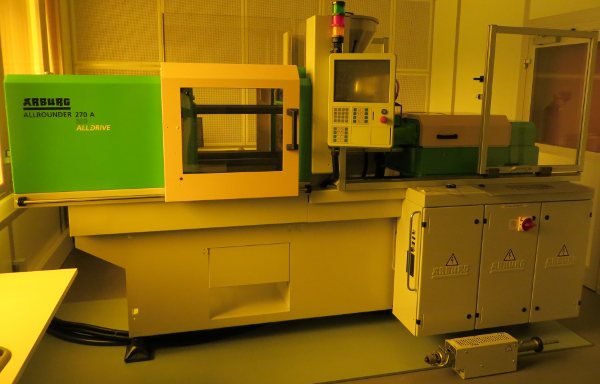

ARBURG injection molding machine model Allrounder 270 A 350 - 70

Injection molding

  • Clamping force 350 kN
  • Thermoplastic processing
  • Modular drive technology with electromechanical servo drive of the main axes: dosing, injection, mold opening and closing
  • Hydraulic drives: Nozzle movement and ejector
  • Small accumulator hydraulics with:
    • 5.5 kW drive motor
    • Pump with 11.2 l/min loading volume flow
  • Overall electrical connection, therefore suitable for clean room applications
  • Protective housing
  • Micro injection module
  • Micro injection units for application flexibility
    • Injection unit 70
    • Injection unit 30

Injection unit

Screw diameter 18 mm
Injection volume 23 cm³
melt temperature max. 450°C

Clamping unit

Clamping force 350 kN
Mold mounting platen (w*h) 380 x 380 mm
Mold installation height min. 150 - 350 mm
platen distance max. 350 - 550 mm
Mold weight clamping platen max. 200 kg

Micromodule

Injection screw diameter 8 mm
Injection volume (polystyrene) 2.3 cm³
Mass temperature

max. 450°C

Special equipment

  • Vacuum equipment, variothermal mold temperature control possible
  • Hydraulic core pull control
  • Programmable embossing process
  • Low-wear plasticizing unit (abrasion and corrosion protection)
